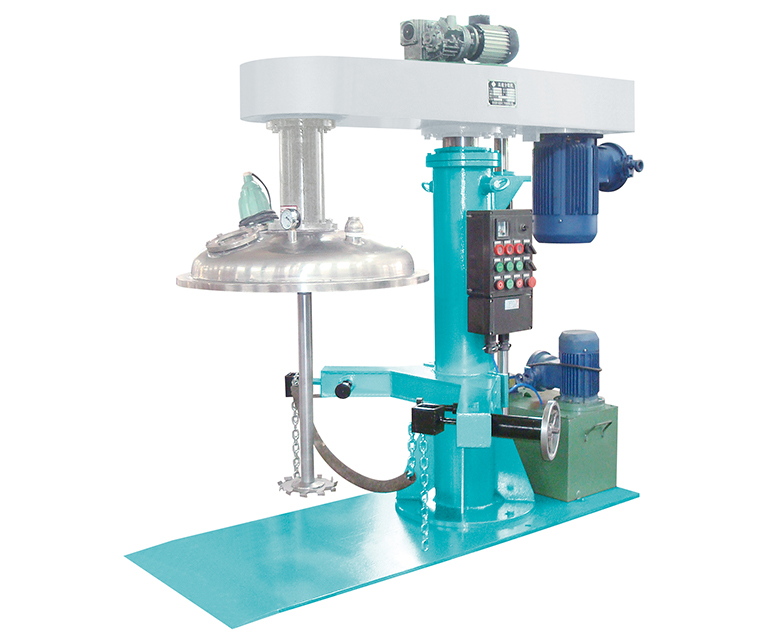

用于多氣泡物料和易揮發性溶劑較多的工藝中，通過抽真空使物料在真空中的容器內分散，減少氣泡和溶劑的揮發，通過真空狀態的分散可以加速物料的分散細度，使物料迅速脫泡。結構簡單、真空度高、操作方便、適用度廣。
It is used in craftwork with honeycombed material and fugitive solvent. Through creation of vacuum, the material is dispersed in the vacuum container to reduce the bubble and solvent volatilization.The vacuum condition dispersion accelerates the dispersion of material fineness to make the material deaearating quickly. It has simple structure, high degree of vacuum, convenient operation and the wide range of application.
| 規格Type | GFJZ200 | GFJZ400 | GFJZ600 | GFJZ1000 |
| 電機功率 Motor power (kw) | 7.5 | 15 | 22 | 30 |
| 轉速 Speed (r/min) | 0-1500 | 0-1500 | 0-1500 | 0-1500 |
| 料桶容積 Capacity (L) | 200 | 400 | 600 | 1000 |
| 升降行程 Lift (mm) | 900 | 1000 | 1200 | 1200 |
| 真空度 Vacuum degree (mpa) | ≤-0.07 | ≤-0.07 | ≤-0.07 | ≤-0.07 |
| 分散盤直徑 Diameter of disc (mm) | 200 | 250 | 330 | 380 |
